Description

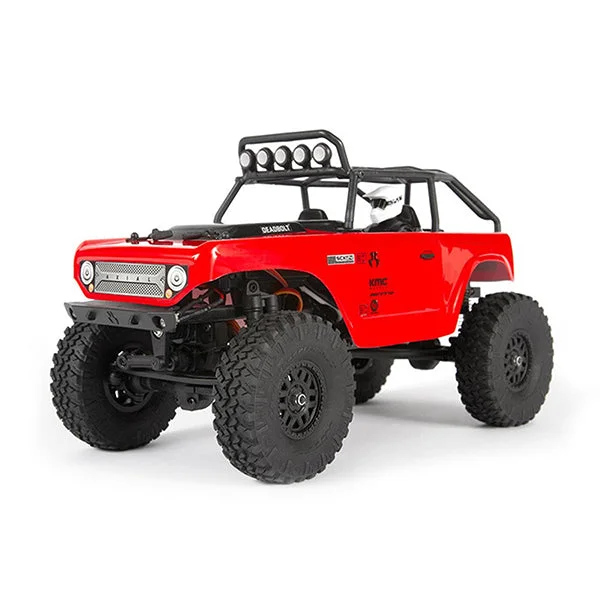

The Axial SCX24 Deadbolt 1/24 Scale RTR RC Crawler offers exceptional realism in a compact size, making it perfect for both indoor and outdoor off-road fun. With its detailed design, solid chassis, and full-function capabilities, this mini-crawler is ready for challenging terrain. It features high-grip tires, precision steering, and a powerful motor to conquer obstacles with ease. Ideal for small spaces or rugged trails, the SCX24 Deadbolt is the go-to RC vehicle for hobbyists looking for versatile, all-terrain crawling action in a smaller scale.
Features:
- Includes radio system, ESC and transmitter batteries
- Includes motor and on-board LiPo battery
- Realistic narrow-stance rock crawler body in olive green or red
- Molded roll cage with realistic light bar
- Realistic driver figure and many other scale details
- Officially licensed KMC XD229 Machete Crawl wheels
- Officially licensed Nitto Trail Grappler M/T tires (S30 compound, large block tread)
- Full-time 4WD
- Splined and sleeved front and rear drive shafts allow for maximum suspension travel while keeping the power to the wheels
- Steel front and rear axles, front stub axles and dogbones provide strength and durability
- Rugged steel C-channel frame rails with bracing keep everything rigid and aligned
- Front and rear axles consist of a two-piece, molded plastic solid axle design
- 3-Link front and 4-link rear suspension supply optimal handling
- Coil-over shocks with simulated reservoir and durable plastic suspension links deliver proven Axial crawling performance
- Front and rear differentials each house a worm gear setup to power the axles and create higher ground clearance. Worm gear drive also provides a low gear ratio to reduce torque twist
- Two LEDs in the front bumper for night driving
Specifications:
Approximate Assembly Time: No assembly requiredBatteries: 7.4V 350mAh 30C LiPoBody: Painted and trimmed Axial DeadboltCharger: USB LiPo chargerChassis: Stamped steel railsCompletion Level: Ready-To-RunDifferential: Worm gear 16T/4TDrivetrain: 4WDGear Pitch: 32-PitchGround Clearance: 1.06″ (27mm)Height: 4.73″ (120.2mm)Length: 7.8″ (199.5mm)Motor Size: 180Motor Type: BrushedPinion: 10TRadio: AX-4 2.4GHz 2-channelServos: AS-1 steering servoShock Type: Plastic body coil-over .9 – 1.3″ (24 – 33.4mm)Size/Scale: 1/24Speed Control: AE-6 ESC receiver/comboSpur Gear: 55TSuspension: Solid axle, front and rearTire Diameter: 2.0″ (51mm)Tire Tread: Nitto Trail Grappler M/T, large block treadTrack: 3.9″ 99.5mm)Vehicle Type: CrawlerWater-Resistant: NoWeight: 0.5lb (0.22kg)Wheel Diameter: 1.0″ (26mm)Wheel Type: Black Plastic Licensed KMC XD229 Machete CrawlWheel Width: 0.48″ (12.4mm)Wheelbase: 5.25″ (133.5mm)Width: 3.9″ (99.5mm)
Includes:
- (1) SCX24™ Deadbolt™ 1/24 Scale 4WD Truck
- (1) Axial AE-6 ESC/receiver combo (installed)
- (1) Dynamite® 88T brushed electric motor (installed)
- (1) Axial AS-1 steering servo (installed)
- (1) Axial® AX-4 2.4GHz 2-channel radio
- (4) AA transmitter batteries
- (1) 350mAh 2S 7.4V LiPo battery
- (1) USB LiPo charger
- (1) Product Manual
