Description
4PCS IFlight XING 2814 SPECIFICATIONS
Brand Name: AIRFORTH
Origin: Mainland China
Material: Metal
RC Parts & Accs: Motors
Size: As Show
For Vehicle Type: Helicopters
Upgrade Parts/Accessories: Other
Remote Control Peripherals/Devices: drone electric motor
Tool Supplies: Assembled class
Technical parameters: Value 2
Model Number: iFlight XING 2814
Four-wheel Drive Attributes: Assemblage

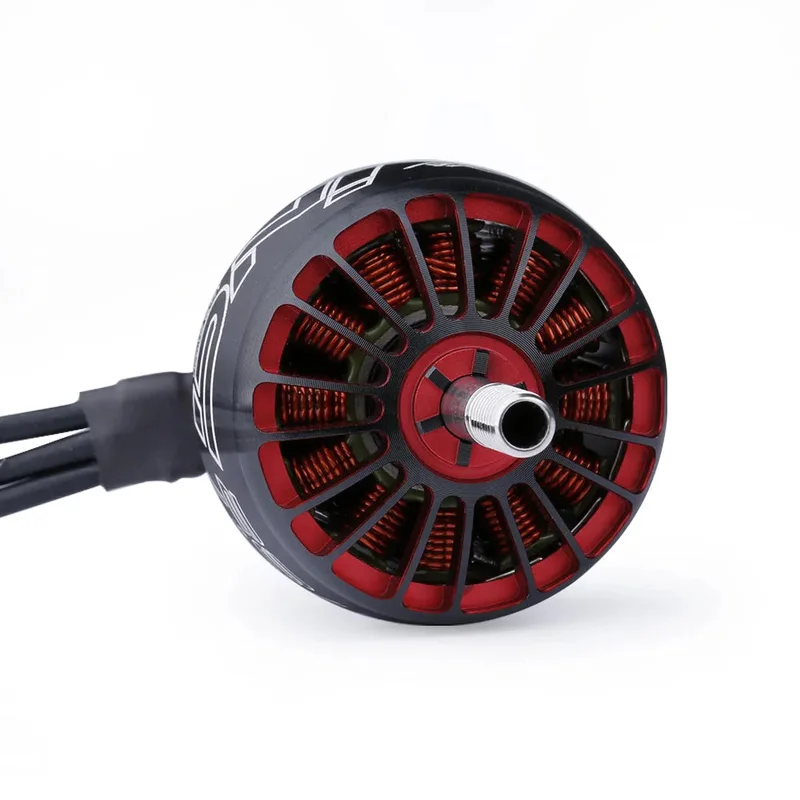

XING X2814 FPV NextGen Motor
PRODUCT DESCRIPTION
The Motor XING 2814 designed for bigger quads like 9-10 inch quad frames. which is with better efficiency in this range frames. The XING 2814 features adopt Japan NSK bearing. N52H arc magnets. It offers incredible thrust number. highly responsive and extremely smooth flight characteristics. The bigger stator size of 2814 allows it to provide instant power to save you from those crazy mountain dives last minute. It’s a great motor if you’re building bigger drones like 9 inch or 10 inch.
Features:
* 7075 aluminum Bell and Base
* Electromagnetically matched magnets and stator
* Japanese NSK 11*5*5 bearings
* N52H Arc curve magnets
* Motor wires protected
* Hex bolt shaft set screw
* Dynamically balanced
Specification:
-Voltage Range: 2-6S(for different KV. different power support. please refer to the Test Report to choose your suitable KV and batteries)
-KV Option: 880KV/1100KV/1700KV/2200KV
-Configuration: 12N14P
-Bearing: NSK/11*5*5
-Stator Diameter: 28
-Stator Length: 14mm
-Shaft Diameter: 5mm
-No.of Cells(Lipo): 2-6S
-Weight: 88.3g(with a short cable)
-Motor mount hole: 19*19 φ3mm
Package included:
1pc x X2814 motor
1pc x M5 Screw nut
4pc x M3*8 screws
iFlight XING 2814 motor specifications: KV rating – 880. configuration: 12N14P stator diameter – 28mm. stator length – 14mm. shaft diameter – 5mm. Dimensions: φ36*30mm. weight – 88.3g. Idle current: 6A. voltage: 41.25V. current at 1V/cell (I0A) @ 10V – 24A. Number of cells (Lipo): 3-6S. Max continuous power: 1221.6W.
