Description
Features:
-
Anodized aluminum CNC-machined bell
-
High-quality steel shaft and bearings
-
Multi-strand windings for optimized efficiency
-
Smooth. reliable performance under high load
-
Ideal for 7” FPV racing. freestyle. or long-range builds
Key Specifications:
| Parameter | Details |
|---|---|
| Brand | EMAX |
| Series | ECO II |
| Model | 2807 1300KV |
| KV Rating | 1300KV |
| Framework | 12N14P |
| Motor Dimensions | Φ33.9 × 34 mm |
| Shaft Diameter | 4 mm |
| Shaft Thread Direction | CW (Clockwise) |
| Prop Adapter Thread | M5 |
| Mounting Hole Pattern | 19 × 19 mm |
| Weight | 47.6 g (without silicone wire) |
| Lead Wire | 200mm. 18 AWG silicone wire |
| Battery Support | 3–6S LiPo |
| Recommended Prop Size | 6″–7″ |
Package Includes (Per Motor):
-

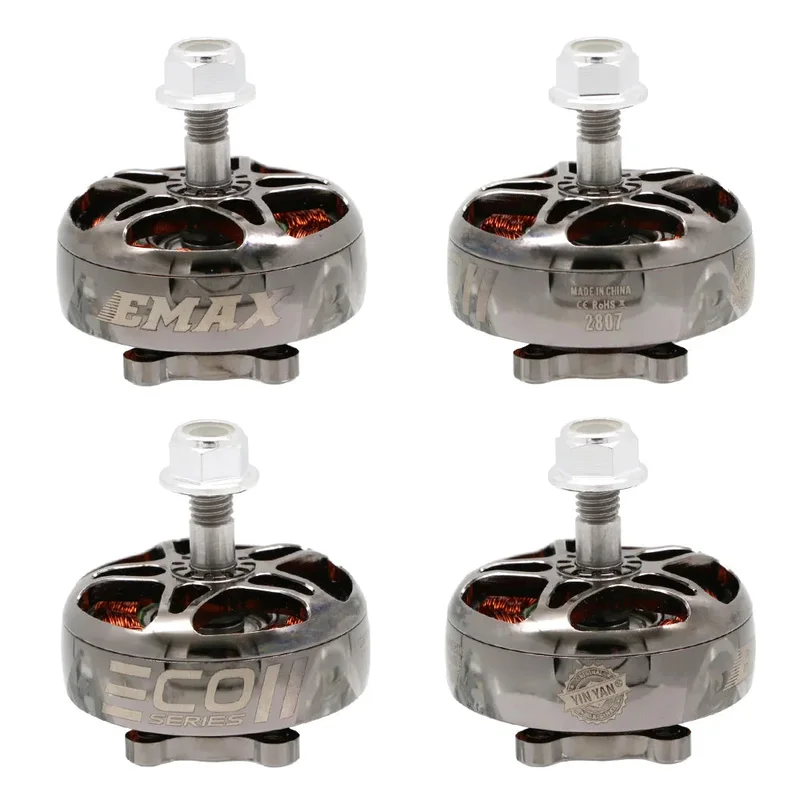

1 × EMAX ECO II 2807 1300KV Brushless Motor
-
5 × M3×10 Screws
-
5 × M3×8 Screws
-
1 × M5 Aluminum Nylock Nut
-
1 × Washer and Shaft Screw
EMAX ECO II 2807 brushless motors. KV1300-1700. for FPV racing drones. Dimensions: 33.9x34mm. Max power: 1310W (6S). 1210W (5S). 870W (4S). Weight: 46.9-47.9g. Supports 6-7″ props.
ECO II Series: Improving the proven. EMAX engineers design ultimate brushless motors for FPV drones.
ECO II Series brushless motors offer affordable. high-performance technology for FPV racing drones. enhancing speed and efficiency.
ECO II motors feature modern. rounded design with thick reinforcements for durability. Reflective surface enhances aesthetics. Powerful magnets ensure high performance for FPV racing drones.
ECO II uses n52 magnets for improved throttle response. higher RPM. more torque. and thrust. Ideal for racetracks and flight situations. Next generation in FPV racing drone motors.
ECO II Series brushless motors enhance performance. durability. and affordability.
EMAX ECO II 2807 1300KV 6S brushless motors for 7-inch FPV racing drones. Pack includes motor. screws. and accessories. Made in China. CE & RoHS certified.
