Description
Overview

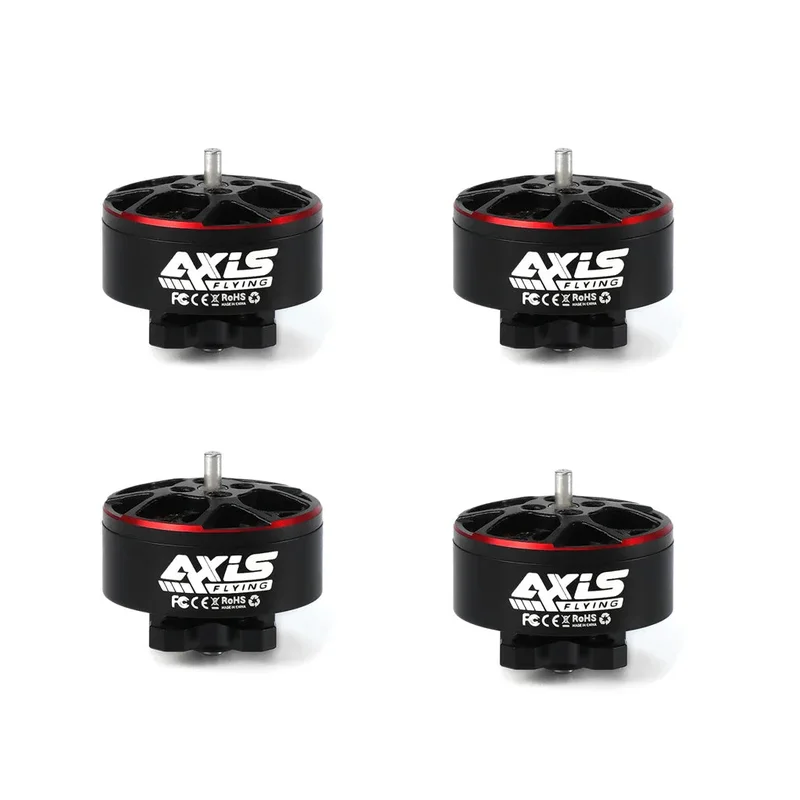

The Axisflying C-Series Brushless Motors are crafted for cinematic FPV pilots who demand smooth. responsive. and high-torque performance. Designed for 2–2.5 inch Cinewhoop drones. the C135 and C145 motors deliver balanced thrust. low vibration. and precise control. helping creators achieve perfect footage on the first try.
Available in two models:
-
C135 1303.5 5500KV – Optimized for 2-inch cinewhoops. paired best with Gemfan D51-4 / D51-5 props
-
C145 1404.5 4500KV – Designed for 2.5-inch cinematic builds. best with Gemfan D63-3 / D63-5 props
Key Features
-
✅ High Torque & Smooth Control – Ideal for cinematic FPV flying
-
✅ 5500KV / 4500KV for 4S setups
-
✅ C135: Compact. lightweight for 2″ builds
-
✅ C145: More powerful for heavier 2.5″ cinewhoops
-
✅ IP53 Bearing Shield Technology (C145) – Dustproof & splash-resistant. longer bearing life
-
✅ Supports over 850g thrust. peak current ~25A
-
✅ N52H arc magnets. 12N14P design for efficiency & power
Specifications
| Model | KV | Stator Size | Mounting | Prop Size | Cable | Weight | Dimensions |
|---|---|---|---|---|---|---|---|
| C135 | 5500KV | 1303.5 | 4×M2 (Φ9mm) | 2″ (D51-4/5) | AWG20. 150mm | ~ | Φ26.9×28.8mm |
| C145 | 4500KV | 1404.5 | 4×M2 (Φ12mm) | 2.5″ (D63-3/5) | AWG20. 150mm | ~ | Φ26.9×28.8mm |
Package Includes (Per Motor)
-
1 × C135 or C145 Brushless Motor
-
4 × M2*5 Motor Screws
-
1 × M2*4 Shaft Lock Screw
-
2 × M2*7 Prop Screws
-
1 × O-Ring
-
1 × Washer
⚠️ Package includes 4 motors total (Optional KV version: C135 or C145)
– The motor is very powerful that can get over 0.85KG and most current is about 25A
*Package
– 1* C145 motor
– 4* M2*5 screws for motor
– 1* M2*4 screw for lock shaft
– 2* M2*7 screws for lock props
– 1* O-ring
– 1* Washer
Axisflying Fpv Brushless Motor C145 1404.5 For 2.5inch Cinewhoop And Cinematic Drone
With FPV trending in cinematic and commercial filming. we – Axisflying – are very proud to present you our new C cinematic motor series.
The C series motor has been developed for Cinematic FPV pilots who fly to create and have high-quality requirements.
Cinematic pilots often only have one chance to capture their best shot so they work hard to fine-tune their flying abilities and master: control. anticipation and precision. We bring you today a new cinematic motor to help you enhance your cinematic flying skills.
The C series motor features the perfect balance required for your cinematic flights: smoothness. reactivity and high torque for a delicate control feel along high efficiency to maximize your flight time.
*Forword
– C145 motor is special designed for 2.5inch cinewhoop and cinematic drone that need more powerful and torque.
– C145 motors run perfect with Gemfan D63-5 and D63-3 props
– 4500KV. All rights reserved.
