Description

SunnySky X6215S Brushless Motor  SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Motor

Tool Supplies: Assembled class

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 14+y

RC Parts & Accs: Servos

Quantity: 1 pcs

Origin: Mainland China

Model Number: X6512S

Material: Composite Material

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

Brand Name: uuustore

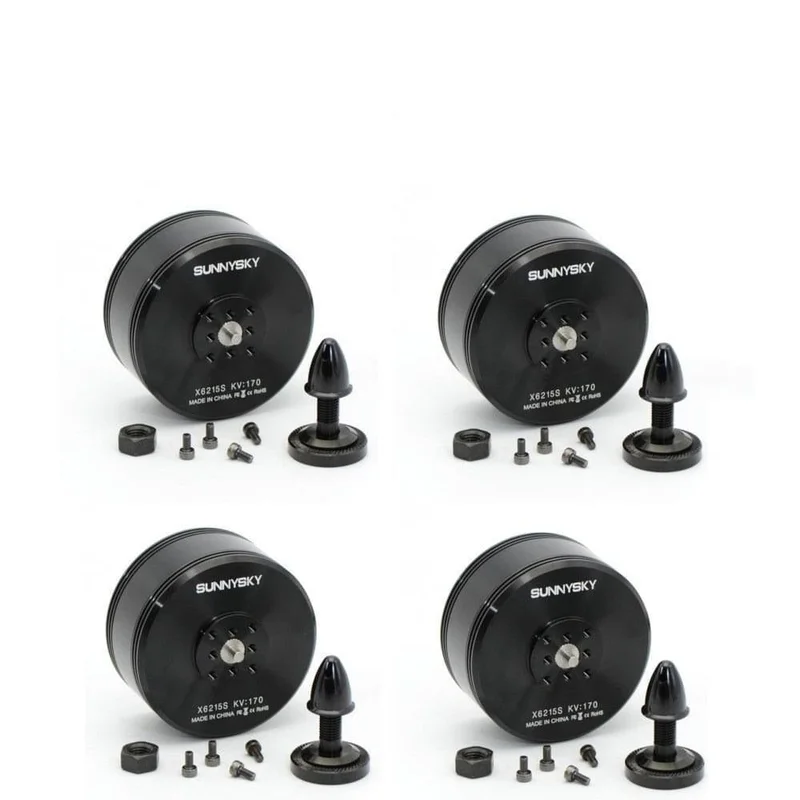

1/2/4PCS SunnySky X6215S Brushless Motor XS-Series With Accessories 170KV 210KV 350KV for RC Racing Drone Brushless Motor

Motor model/ X6215S/KV170 X6215S/KV210 X6215S/KV350

KV value

Number of slots 24N28P 24N28P 24N28P

Internal resistance

Between phases 70mΩ 58mΩ 34mΩ

Motor size φ69.3*43.0mm φ69.3*43.0mm φ69.3*43.0mm

Shaft diameter 4.0mm 4.0mm 4.0mm

Motor silicone

Wire specifications 20AWG 100mm 20AWG 100mm 20AWG 100mm

Motor weight

(including wire) No data No data No data

Working rated voltage 12S 12S 6S

No-load current 1.5A/10V 1.6A/10V 2.5A/10V

Maximum continuous

power 2175W 3675W 1825W

Maximum continuous

current 43A/30S 73A/30S 73A/30S

ESC is recommended 80A 80A 80A

Recommended

Propeller specifications            22*6.6                            22*6.6                     22*6.6

the new XS patented appearance design effectively prevents sand and gravel debris from entering the motor . it also has a ventilation and heat dissipation effect .

The knurled shaft is securely seated within the end cover. held in place by a circlip that fixes the rotor. This design ensures stable performance. effectively preventing the loosening of the wheel during use.

The XS series employs high-quality. large-diameter custom-made EZO bearings sourced from Japan. These bearings provide exceptional stability during operation. while minimizing noise levels and boasting an extended lifespan.

SunnySky’s X6215S motor features exceptional manufacturing quality. with precision-crafted components and unique assembly techniques that result in minimal axial and radial runout. This ensures a stable and reliable performance for your aircraft during flight.
